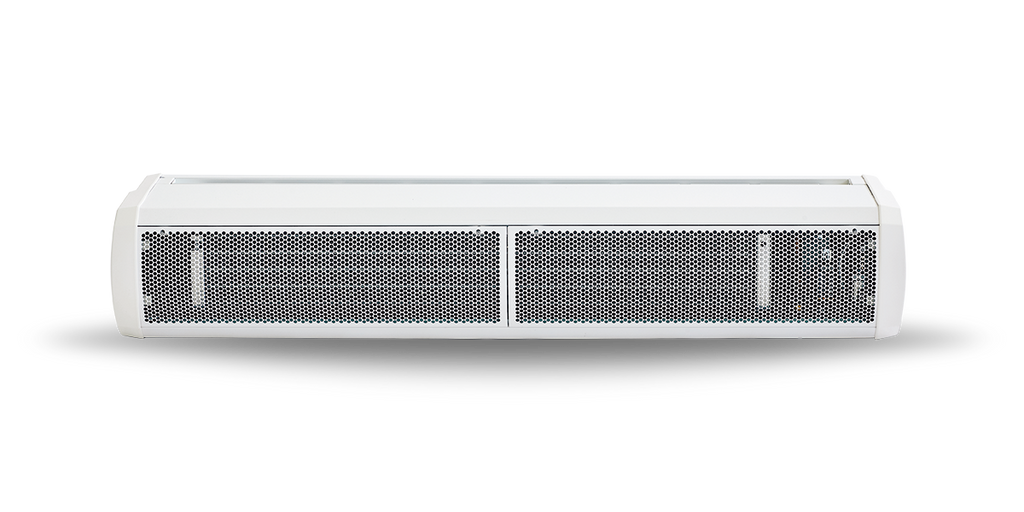

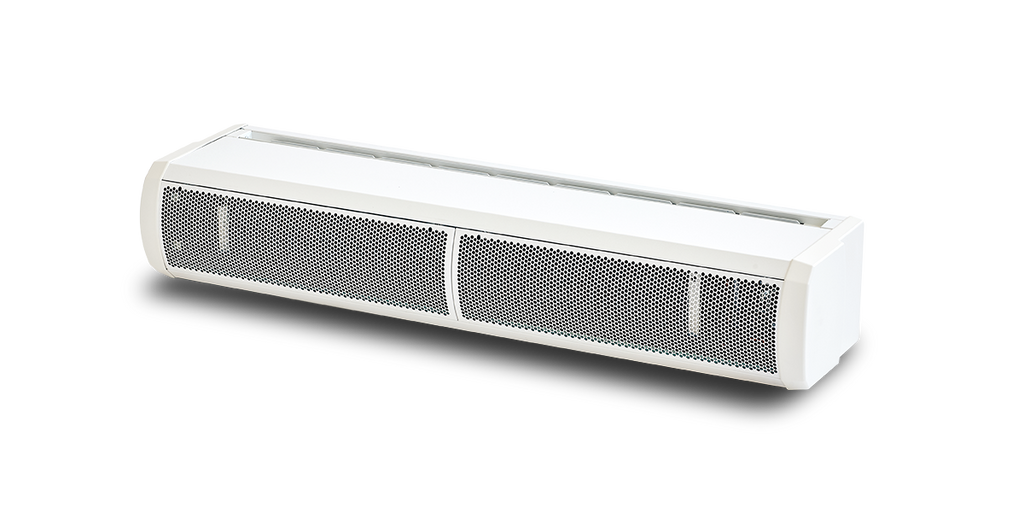

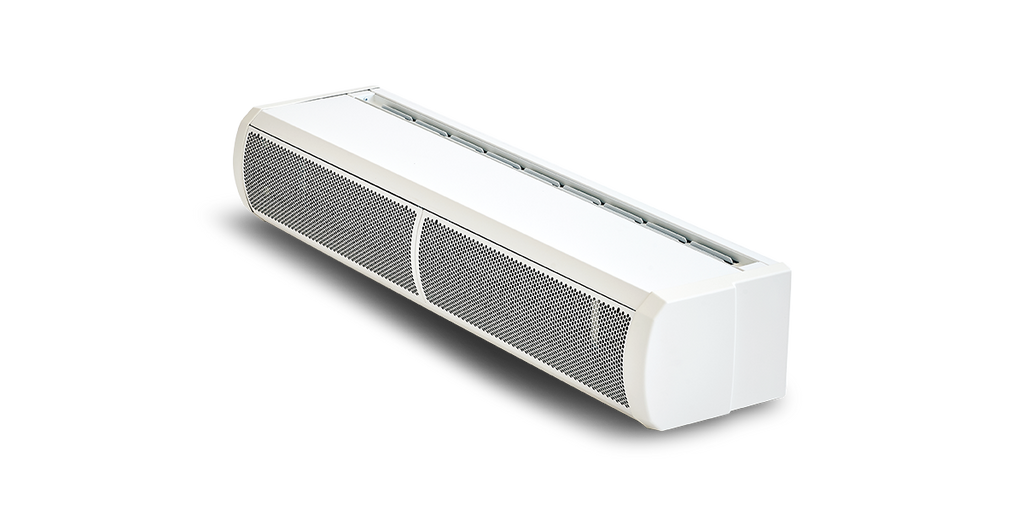

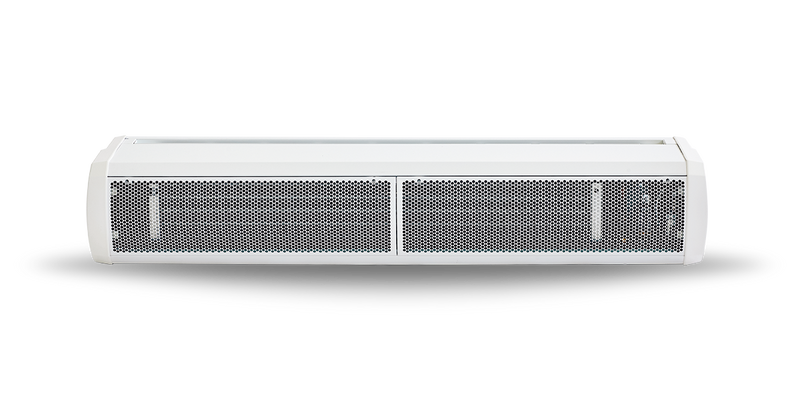

Thermoscreen C1500ENT Surface Mounted Air Curtain (Electric) 1411457000
Product Description
Compact and cost-effective, Thermoscreens C Series air curtains are specifically designed for applications where there’s limited headspace above the door. With a choice of surface or recessed mounting, there’s a C Series solution to suit any doorway, no matter how restricted the space may be.
Features
- Compact, space-saving design
- Ambient, water heated or electric heated
- Surface or recessed mounting
- Ecopower energy saving controls
- ErP compliant and BMS ready
- Last man switch friendly
- Tangential fans - powerful linear air flow
- Integrated thermostat
- Water heated units supplied with a motorised three-port valve
- Instant heat, high-efficiency heating element
- Downrated single phase output
- Supplied with wall brackets as standard
- Ceiling fixings provided (excluding drop-rods)
- Joining kits available for connecting surface mounted units
- Hinged grilles for easy installation and maintenance (recessed units)
Suitable for
✓ Small entrances
✓ Restaurants, Offices, Retail, Schools
Installation
- Recommended installation height up to 3.0m
- Horizontal mounting
Specifications
Dimensions | 1669 × 275 × 198 cm |
Categories | Surface Mounted |
Colour | Standard Colour – RAL 9016 (White) |
Heating Source | Electric |
Power Supply | 400V 3N~ 50Hz |
Load per Phase (Amp) | 18.3 |
Heat output low/high (kW) | 6/12 |
Max Air Volume (m3/h) | 1800 |
Max Air Velocity (m/s) | 9 |
Weight (Kg) | 23 |
Noise High/Mid/Low dB(A) @ 3m | 55/53/49 |
Manuals and Guides
O/M instruction - Thremoscreens C1500ENT Surface Mounted Air Curtain (Electric)
