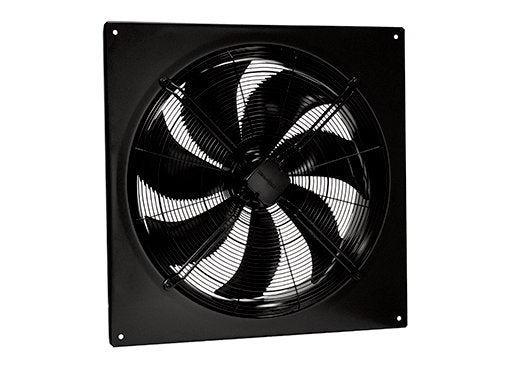

Systemair AW 500E4 Sileo Plate Axial Fan Single Phase - 500mm
£487.46

Systemair AW 500E4 Sileo Plate Axial Fan Single Phase - 500mm

SystemairPRODUCT CODE: 37412
filler

Price:
£487.46

Stock:

Product Description

E4 (4 pole) manufactured by Ziehl Abegg (German)
8878 m3/hr, 727W motor

Features
  • Speed controllable by voltage reduction
  • Inlet protection guard
  • Safe and maintenance free operation
  • Installed in any mounting position
  • Electric connection via terminal box mounted on the motor
  • Single phase fans are supplied with capacitor



AW sileo range have a bionic shaped fan blade, and are driven by external rotor motors. The AW range is equipped with a square wall plate, galvanized steel and powder coated in black (RAL9005).

The protection guard at the inlet side is powder coated in black. The axial impeller is manufactured from black high efficiency composite material. The impeller is balanced dynamically in two levels in accordance with DIN ISO 1940 part 1, quality G6.3.

The motors are equipped with thermal contacts for motor protection, with leads to be connected to a motor protection unit.


Suitable for:

Kitchens, Factories and Warehouses


Installation

Installation in any mounting position


Specifications

Brand Systemair
Motor Type AC
Impeller Size 500mm
Warranty 1 Year Manufacturers
Mounting Any Position
Voltage (Nominal) 230 V

Frequency
50 Hz
