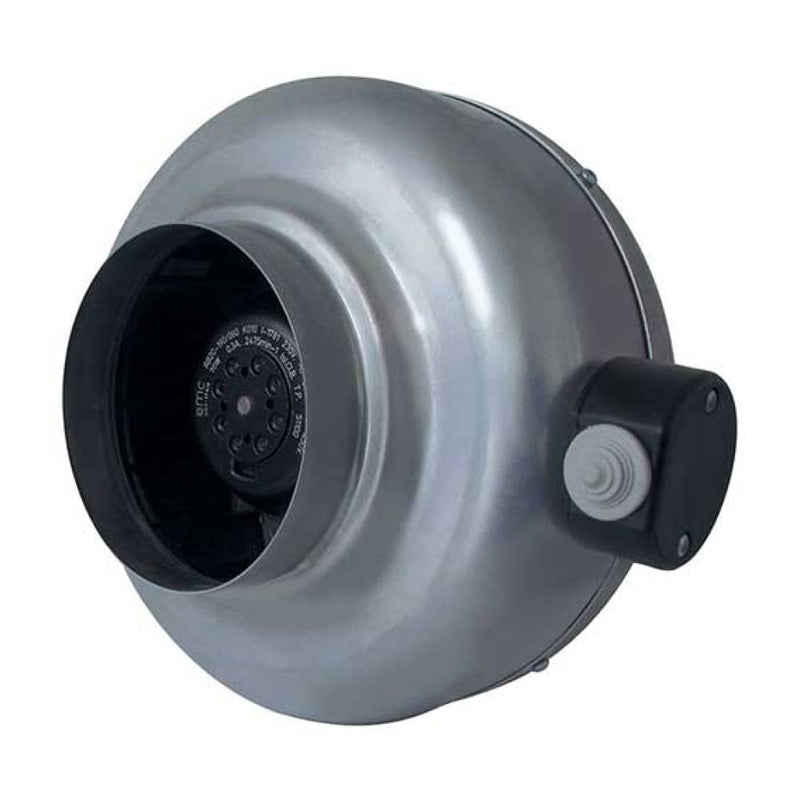

S&P VENT-150NK In-Line Centrifugal Duct Fan - 150mm/6"
£128.08

S&P VENT-150NK In-Line Centrifugal Duct Fan - 150mm/6"

S&PPRODUCT CODE: 5145889000
filler

Price:
£128.08

Stock:
In stock

Product Description

In-Line duct centrifugal fan. Manufactured from high grade corrosion resistant pressed galvanised steel and supplied as standard with a pre-wired wiring junction box and robust mounting foot or mounting brackets (depending on product size). All models include an enclosed type, single phase external rotor motor with factory matched backward curved non-stalling impeller. Models 355 and 400 are manufactured in sheet steel protected against corrosion by cataforesis primer and black polyester paint finish.



Motor

100-315 models: Motor (and terminal box) are IP44, class B insulation with ball bearings and safety thermal overload protection.

355-400 models: Motor (and terminal box) are IP54, class F, with ball bearings and safety thermal overload protection.


    Manuals & Guides
    S&P VENT-NK Datasheet

    Model VENT-150NK
    Voltage 230 V - 50/60 Hz
    Speed 2550 rpm
    Maximum Absorbed Power 95 W
    Maximum Absorbed Current 0.4 A
    Maximum Airflow 750 m³/h
    Sound Pressure Level 59 dB(A) Inlet, 56 dB(A) Outlet, 42 dB(A) Radiated
    Maximum Ambient Temperature -40°C to +60°C
    Weight 5 kg
    Depth 213 mm
    Height 333 mm
