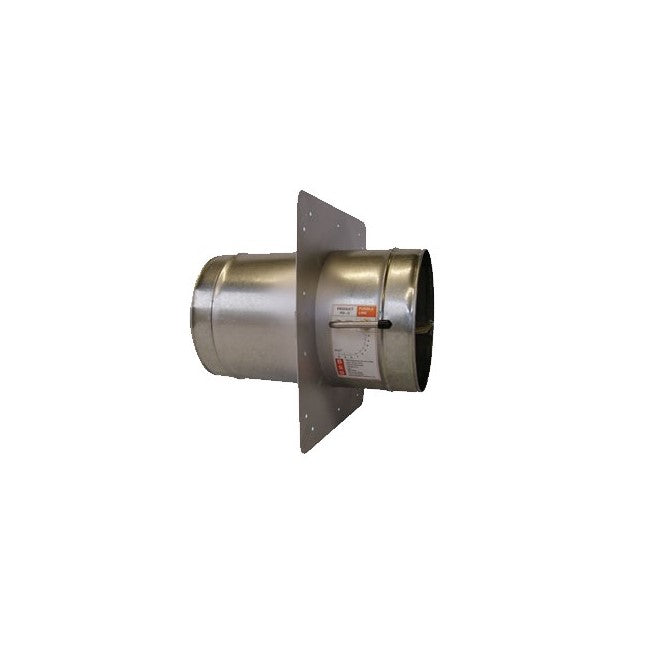

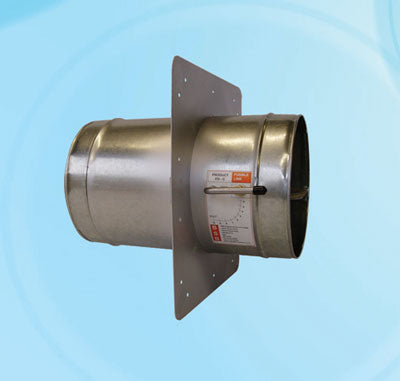

BSB FD-C Series Circular Single Blade Externally Resettable Combination Fire and Volume Control Damper
£93.98
Product Description

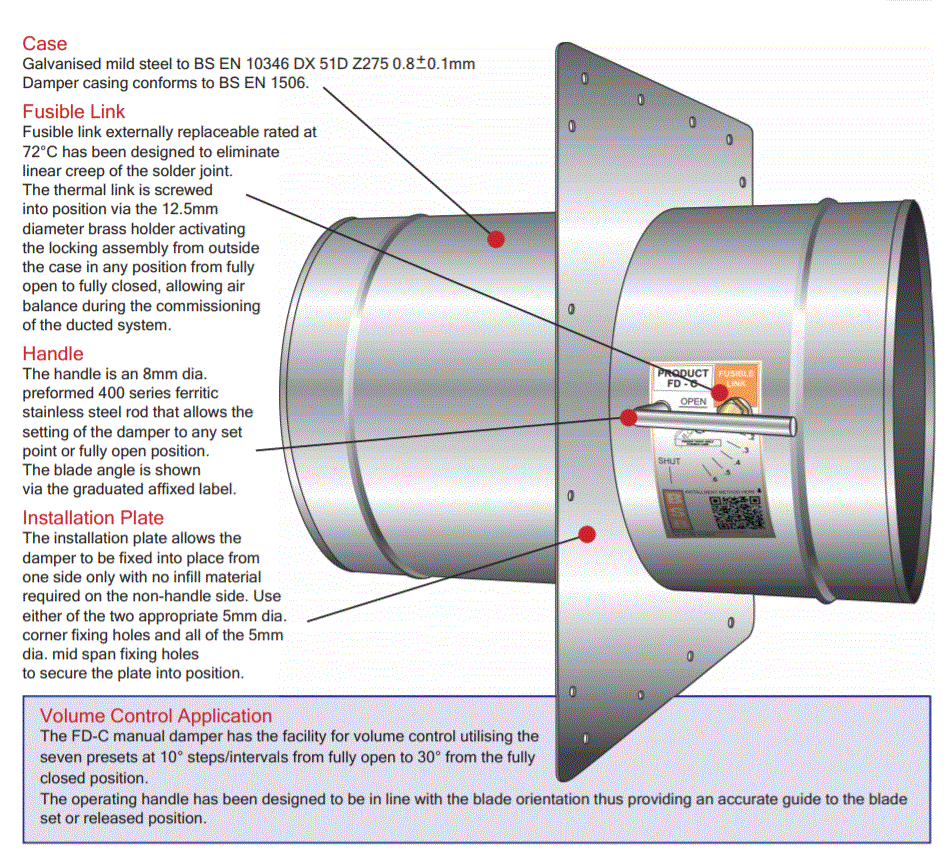

The FD-C Manual Operation Single Blade Fire Damper with volume control facility has been designed specifically for installations where space is at a premium. The testing and resetting of the damper and thermal fuse external of the duct allows for ease of commissioning and maintenance.
- ES classified fire dampers with reduced smoke leakage characteristics (BS EN 1366-2)
- Aerodynamically Air Control tested to (BS EN 1751)
- Tested and assessed installation methods in differing supporting constructions (BS EN 1366-2)
- Integrated volume control capability
- Replaceable fusible link from outside of the ductwork
- Commissioning friendly
- External blade position indicator
- Damper casing conforms to BS EN 1506
Specifications
Standard Case Length | 320mm |
Warranty | 1 Year Manufacturer |
Dimensions | 8 Sizes available (100mm - 315mm) |
Manuals & Guides
BSB FD-C Series Circular Single Blade Data Sheet
