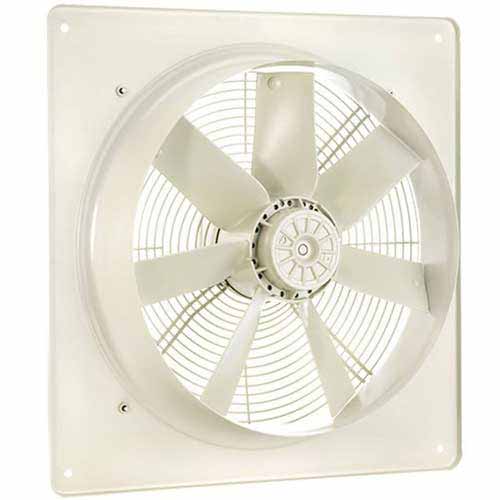

Vent Axia ESP31514 Plate Mounted Extractor Fan Single Phase - 315mm
£341.61

Vent Axia ESP31514 Plate Mounted Extractor Fan Single Phase - 315mm

Vent-AxiaPRODUCT CODE: ESP31514
filler

Price:
£341.61

Stock:
In stock

Product Description

Features

  • Die cast aluminium impellers
  • Fully speed controllable
  • Air Volumes up to 13.89m3 /s
  • Sizes 250mm to 1000mm dia protected to IP54
  • Operating Temperatures from -40°C up to +70°C Motor
  • Insulation Class F
  • Thermal overload for motor protection
  • Reversible - Supply or Extract
  • Quality Assurance to BS EN ISO 9001:1994
  • Performance tested to ISO 5801


    The EuroSeries® ESP axial blade plate fans, feature a single shot die cast aluminium blade and external rotor motor design.

    The EuroSeries® ESP range is available in eleven sizes with the extract performances up to 13.89m³/s, with pressure characteristics of up 300Pa. All units are designed for speed controllable.


    Design

    External rotor motors are specially designed and styled for this range of fan. Ball bearings are greased for life. Rotors are dynamically balanced to ISO 1940. Sizes 250-1000mm, motors are protected to IP54, against dust and moisture complying with BS EN 60529:1992. They are ribbed aluminium body castings for efficient cooling. Motor insulation is Class ‘F’ (from -40°C to +70°C).


    Manuals & Guides
    Vent Axia ESP31514 Plate Mounted Extractor Fan Single Phase - 315mm Datasheet
    Vent Axia ESP31514 Plate Mounted Extractor Fan Single Phase - 315mm Installation
