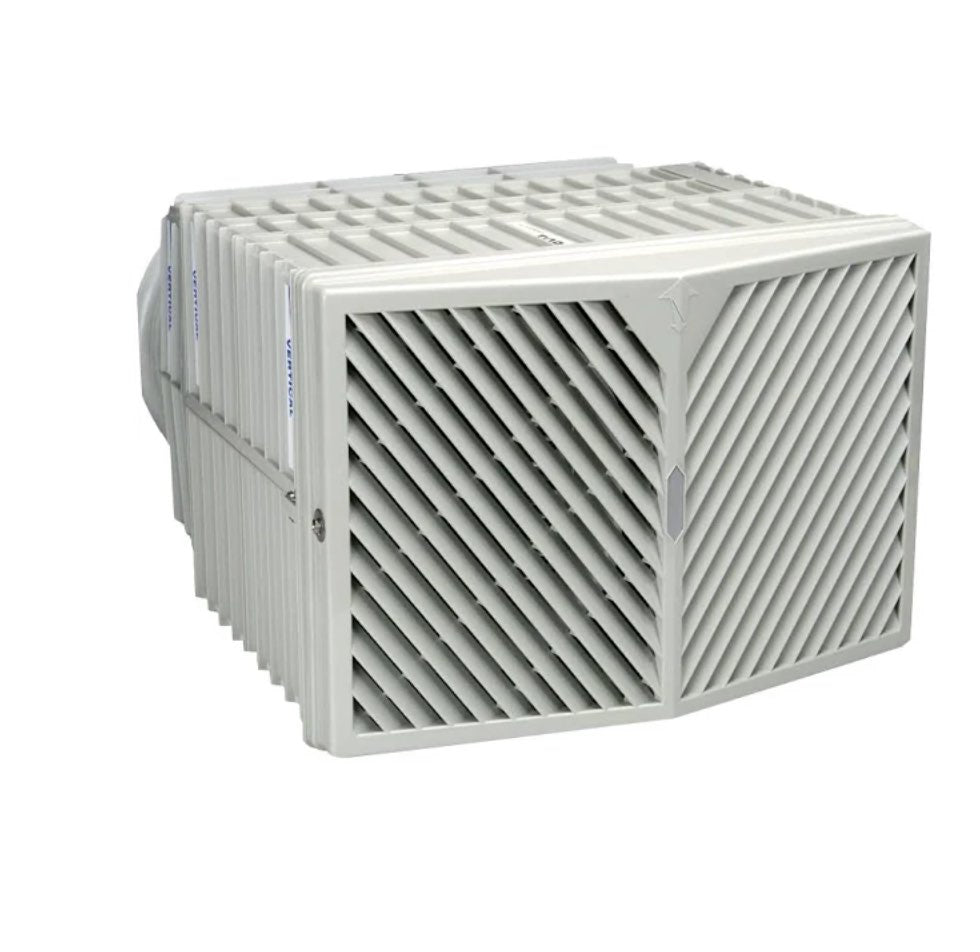

Vent-Axia HR500X Heat Recovery Ventilation Unit 14101070
Product Description

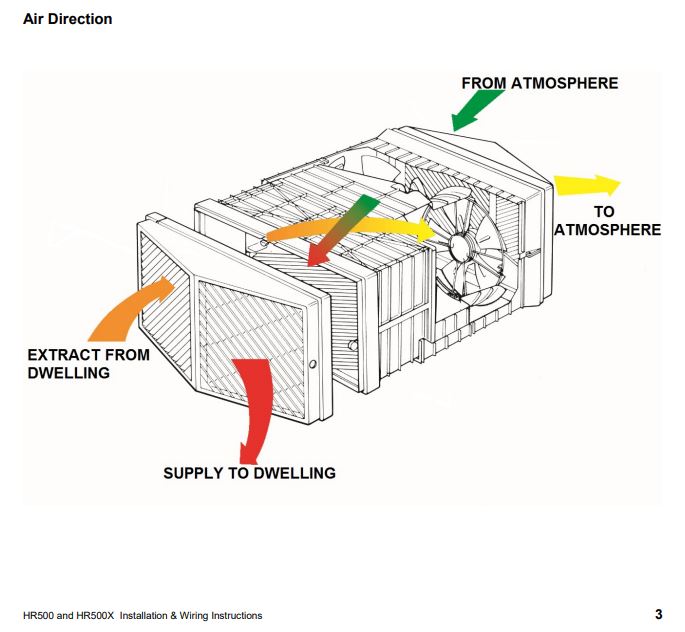

The Vent-Axia HR500X (with integral shutters) Heat recovery ventilation unit for through the wall installation which exhausts stale air whilst introducing warmed fresh air from the outside. As a heat recovery ventilation unit it moves a useful 153 l/s of air. This unit is speed controllable with the facility to reverse the supply air fan and provide 'double extraction' for periods when heat loss is desirable.
The unit is the perfect solution to commercial areas that require a high-performance balanced intake/extract scheme. Ideal for swimming pools, computer rooms, classrooms, offices and the health and leisure industries. In noise, sensitive areas use an autotransformer controller.
Features- Efficient 153 l/s heat recovery ventilation unit or high performance 250 l/s extract fan
- With shutters
- Lightweight, compact and easy to install
- Integral Shutters on X type model
- Up to 70% heat recovery
- Easy to clean
- Controller with sensor mode, allows a range of sensors to be used in conjunction with the HR500
- One controller will operate a maximum of 2 HR500 or HR500X units
- On/Off/Sensor mode
- Choice of heat exchange or high/ low-speed extract fan mode
- Infinitely variable speed control from low to high
- Adjustable minimum speed
- With integral thermal cut-out and circuit fuse protection
Suitable for
Commercial and Leisure Areas
Installation

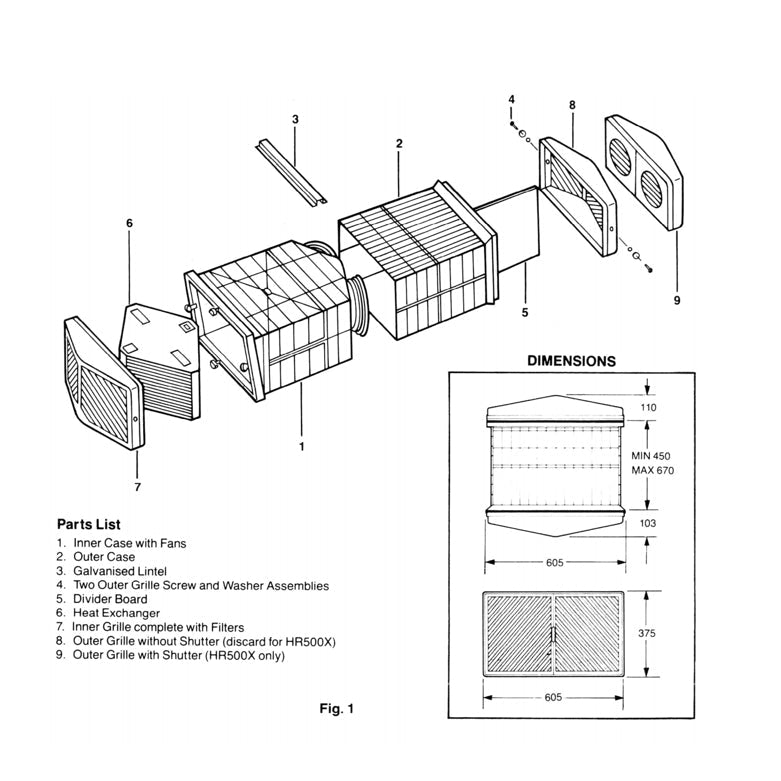

The unit should be ducted to atmosphere using an integral wall liner and should fit wall thicknesses between 450 and 670mm and should have washable reticulated foam filters provided in the supply and extract airflows.
Specifications
Brand | Vent-Axia |
Dimensions | (H)375 mm x (W)605 mm |
Warranty | 1 Year Manufacturers |
Colour | White |
Mounting | Wall |
Heat Exchanger | Yes |
Maximum Operating Temperature | 40°C |
Manuals & Guides
Vent-Axia HR500X Heat Recovery Unit Datasheet
