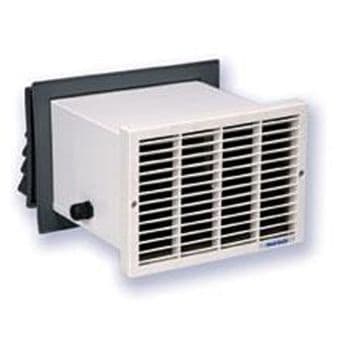

Vent-Axia HR30W Heat Recovery Unit 370363
Product Description
The HR30W has been specifically designed to provide balanced ventilation with heat recovery for installation in bedrooms giving virtually silent overnight operation with a daytime boost option. Low velocity and low noise heat recovery ventilation with a pollen filter for improving the internal environment.
Performance
The HR30W is a through the wall model, with a range of control and length options. The unit is designed for continuous operation providing up to 70% heat recovery, effectively controlling internal relative humidity. The integral high efficiency pollen filter helps eradicate house dust mites to improve health and indoor air quality. Fresh pre-warmed air from the outside is continuously provided to the room with simultaneous extraction of stale, moist air.
An integral heat exchanger transfers heat from the outgoing stale air to the fresh air supply raising the temperature of the fresh air and most importantly reducing the relative humidity of the supply air. This provides control of condensation, odour and creates conditions which can eliminate house dust mites.
Two speed performance: Low 35m³/h and High 50m³/h. Specifically designed for installation in the bedroom.
Features
- Designed for continuous operation, providing up to 70% heat recovery
- Controls condensation and eliminates mould
- Speed controllable
- Quiet operation
- Washable filters
Suitable for
The HR30W has been specifically designed to provide balanced ventilation with heat recovery for installation in bedrooms giving virtually silent overnight operation
Installation
Vent-Axia HR30W units require a 240mm x 160mm hole. Units should be fitted so that they slope towards the outside (nominal 1°) to assist in-built condensate drainage. The telescopic flange ( adjustable to fit walls 220mm to 280mm thick) covers cutting marks and provides a surface for forming a seal with the external wall surface.
Specifications
Brand | Vent-Axia |
Dimensions | (h)195mm x (w)370mm x (d)370mm |
Warranty | 1 Year Manufacturers |
Colour | White |
Mounting | Wall |
Power Consumption (Max) | 23.0W |
Manuals & Guides
Vent-Axia HR30W Heat Recovery Unit Datasheet
