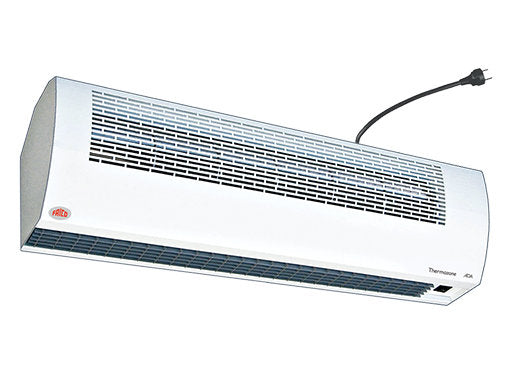

Frico ADA120H Ambient Air Curtain
£772.99

Frico ADA120H Ambient Air Curtain

Not see what you need. hello@eFans.co.uk
SystemairPRODUCT CODE: 5985
filler

Price:
£772.99

Stock:

Product Description

Air curtain for air conditioned premises

• Recommended installation height 2,5 m*
• Horizontal mounting
• Length: 1,2 m

ADA is suitable to use, for example, to keep the cold air inside air conditioned premises. The air curtain creates an air barrier that prevents the intrusion of warm air and also insects, exhaust fumes, smoke, dust, etc.

*Recommended installation height varies depending on the relevant premises.



Technical parameters

Installation
Type of installation Horizontal
Maximum installation height 2,500 mm
Nominal data
Heating type None
Color casing Traffic white
Color casing, NCS NCS S 0500-N
Color casing, RAL RAL 9016
Enclosure class IP21
Ambient working temperature (dry conditions) -20 to 40 °C
Dimensions and weights
Length 1,200 mm
Height 236 mm
Depth 218 mm
Weight 11.8 kg
Air flow
Air flow 1,400; 1,100 m³/h
Sound data
Sound level 51; 44 dB(A)
Sound power level LWA 67 dB(A)
Motor/control supply
Control/motor supply 230 V
Phase(s), motor 1~
Control/motor current 0.12 A
Input power (P1), motor 550 W
